PowerApps Weather

Have you ever thought that you can view the current weather status of various locations (various countries and states)? Yes, Power Apps provided this feature where a user can see the weather temperature details.

In this Power Apps Tutorial, We will discuss what is PowerApps Weather, What is the definition of Current Weather, and the Weather Forecast.

Also, We will see how we can create a Power Apps weather app, how to connect the MSN Weather, and its uses in the app.

Introduction to PowerApps Weather

• PowerApps Weather is also known as PowerApps MSN weather. Whenever you are working with the PowerApps weather, then you must need to connect the MSN Weather connector to the app.
• PowerApps MSN Weather is a type of connector that will help you to get the current or latest weather forecast including the temperature, humidity, precipitation for the specific location.

Definition of CurrentWeather and WeatherForecast

• To get the current weather of a specific location, We will use the path as responses.weather.current
• To get the forecast for the current day of a specific location, We will use the path as responses.daily.day

You can find all the details of the current weather and weather forecast by using these below tables.

Table – 1: (CurrentWeather)

Name	Path	Type	Description
Pressure	responses.weather.current.baro	float	It defines the atmospheric pressure.
Conditions	responses.weather.current.cap	string	It specifies a caption of weather conditions such as rainy, sunny, etc.
Dewpoint	responses.weather.current.dewPt	float	It defines the temperature at which dew forms.
Apparent Temperature	responses.weather.current.feels	float	It represents the apparent temperature or feels-like temperature.
Humidity	responses.weather.current.rh	float	It defines the relative humidity percentage.
METAR weather conditions	responses.weather.current.wx	string	It specifies the METAR code of weather conditions.
METAR Sky Conditions	responses.weather.current.sky	string	It specifies the METAR code of sky conditions.
Temperature	responses.weather.current.temp	float	It defines the current temperature.
UV Index	responses.weather.current.uv	float	It defines the numerical UV index.
UV Index Description	responses.weather.current.uvDesc	string	A description of the meaning of the UV index.
Visibility Distance	responses.weather.current.vis	float	It specifies the visibility distance.
Wind Direction	responses.weather.current.windDir	integer	It defines the wind direction in degrees clockwise from north.
Wind Speed	responses.weather.current.windSpd	float	It defines the wind speed.
Wind Gust Speed	responses.weather.current.windGust	float	It defines the wind gust speed.
Last Updated	responses.weather.current.created	date-time	It specifies the datetime at which the provider created the current condition.
Latitude	responses.source.coordinates.lat	float	It specifies the latitude of the location.
Longitude	responses.source.coordinates.lon	float	It specifies the longitude of the location.
Location	responses.source.location	string	It defines the location for which the provider created the current condition.
Pressure Units	units.pressure	string	It represents the units used for pressure measurements.
Temperature Units	units.temperature	string	It represents the units used for temperature measurements.
Speed Units	units.speed	string	It represents the units used for speed measurements.
Distance Units	units.distance	string	It represents the units used for distance measurements.

Table – 2: (WeatherForecast)

Name	Path	Type	Description
Conditions	responses.daily.day.cap	String	It specifies the weather conditions like rainy, sunny, etc.
Rain Chance	responses.daily.day.precip	float	It defines the chance of precipitation (%).
METAR Weather Conditions	responses.daily.day.wx	string	It defines the METAR code of weather conditions.
METAR Sky Conditions	responses.daily.day.sky	string	It specifies the METAR code of sky conditions.
Wind Direction	responses.daily.day.windDir	integer	It represents the wind direction in degrees clockwise from north.
Wind Speed	responses.daily.day.windSpd	float	It describes the wind speed.
Summary	responses.daily.day.summary	string	It specifies the text summary of the forecast.
Conditions	responses.daily.night.cap	string	It specifies the weather conditions such as rainy, sunny, etc.
Rain Chance	responses.daily.night.precip	float	It specifies the chance of precipitation (%).
METAR Weather Conditions	responses.daily.night.wx	string	It defines the METAR code of weather conditions.
METAR Sky Conditions	responses.daily.night.sky	string	It defines the METAR code of sky conditions.
Wind Direction	responses.daily.night.windDir	integer	It specifies the wind direction in degrees clockwise from north.
Wind Speed	responses.daily.night.windSpd	float	It defines the wind speed.
Summary	responses.daily.night.summary	string	It specifies a text summary of the forecast.
Conditions	responses.daily.pvdrCap	string	It specifies the weather conditions such as rainy, sunny, etc.
Date	responses.daily.valid	date-time	It defines the datetime at which the forecast is valid.
Rain Chance	responses.daily.precip	float	It specifies the chance of precipitation (%).
Max Wind Speed	responses.daily.windMax	float	It defines the peak wind speed for the day.
Max Wind Direction	responses.daily.windMaxDir	integer	It defines the direction of the peak wind for the day.
Humidity High	responses.daily.rhHi	float	It represents the high relative humidity point for the day.
Humidity Low	responses.daily.rhLo	float	It specifies the low relative humidity point for the day.
Temperature High	responses.daily.tempHi	float	It defines the high temperature.
Temperature Low	responses.daily.tempLo	float	It defines the low temperature.
UV Index	responses.daily.uv	float	It defines the numerical UV index.
UV Index Description	responses.daily.uvDesc	string	It defines the description of the meaning of the UV index.
Forecast Date	responses.daily.created	date-time	It defines the DateTime at which the daily forecast was derived.
Sunrise Time	responses.almanac.sunrise	date-time	It represents the time of sunrise on the day of this forecast.
Sunset Time	responses.almanac.sunset	date-time	It represents the time of sunset on the day of this forecast.
Moonrise Time	responses.almanac.moonrise	date-time	It defines the time of moonrise on the day of this forecast.
Moonset Time	responses.almanac.moonset	date-time	It defines the time of moonset on the day of this forecast.
Moon Phase	responses.almanac.moonPhase	string	It specifies the phase of the moon on the day of this forecast.
Moon Phase Code	responses.almanac.moonPhaseCode	string	It defines the code representing the phase of the moon.
Latitude	responses.source.coordinates.lat	float	It describes the latitude of the location.
Longitude	responses.source.coordinates.lon	float	It describes the longitude of the location.
Location	responses.source.location	string	It defines the location for which the provider created the forecast.
Pressure Units	units.pressure	string	it defines the units used for pressure measurements.
Temperature Units	units.temperature	string	It defines the units used for temperature measurements.
Speed Units	units.speed	string	It defines the units used for speed measurements.
Distance Units	units.distance	string	It defines the units used for distance measurements.

Check out, Power BI integration with PowerApps Portals

Create PowerApps Weather App

Next, We will see how we can create weather in PowerApps and use it within the app. Refer to the below instructions to do so.

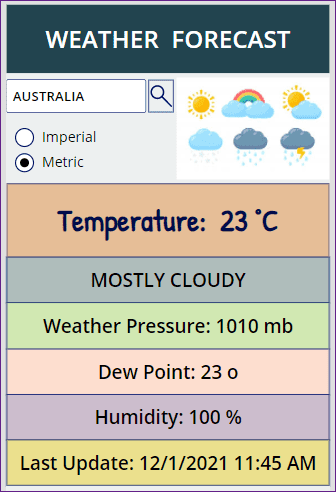

• The below screenshot represents the PowerApps Weather app that I have created. To view the current weather of a specific location, a user will enter the location name in the text box and tap on the Search icon.
• Once the user will search the weather of the particular location, then it will display all the current weather details like Temperature, Pressure, Dew Point, Humidity, Last Update, etc of that place as shown in the below figure.
• Also, there will be two units i.e. Imperial and Metric. If you will select Imperial, then the temperature will appear with the Farhenheit unit and if you will select Metric, then the temperature will appear with the Celcius unit.

Read Power Apps Azure AD Group

Connect MSN Weather in PowerApps

• Before creating the Weather app, you must need to connect the MSN Weather connector to the PowerApps.

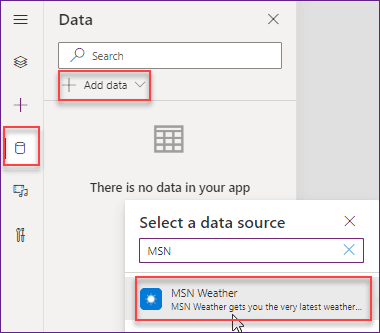

• To connect the MSN Weather in the app, go to the Data tab (from the left navigation pane) -> +Add data -> Search MSN Weather in the search box as shown below.

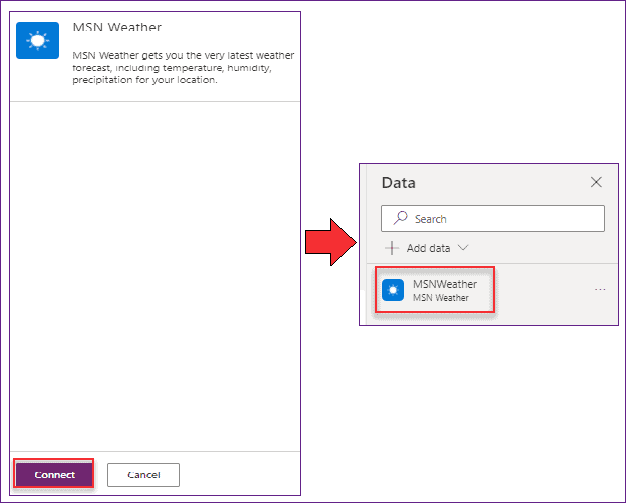

• Click on the MSN Weather connector and then tap to Connect button. Once you will click on it, then the weather connector will connect to the app. Without MSN Weather connector, it is not possible to display the latest weather details in the app.

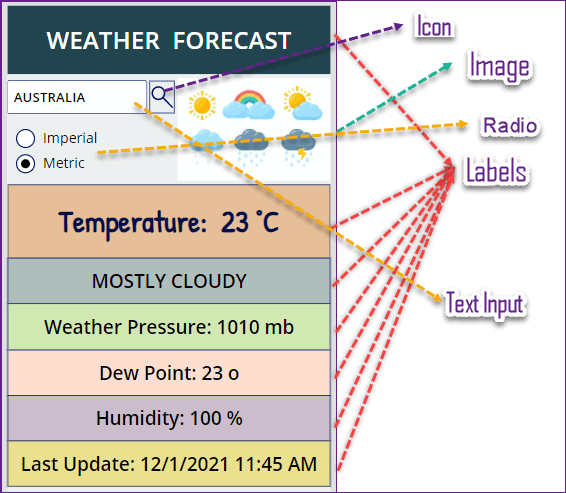

• Next, the things that come to your mind is, what are the PowerApps controls that I have used to make this app. As you can see, I have used these below controls as:

1. WEATHER FORECAST = This is a Label control that I used for the App Title purpose.
2. AUSTRALIA = This is a Text input control where a user can enter the location.
3. Search icon = It is an icon that will help you to search the weather of that specified location.
4. Imperial, Metric = These are the Radio button controls where a user will select for his need.
5. Image = This is simply an image control where you can display the weather pictures.
6. Temperature = This is a Label control where a user can view the current weather temperature of the specific location.
7. MOSTLY CLOUDY = The weather that how you feels can view in this label control.
8. Weather Pressure = This is a label control that specifies the weather pressure of the specific location.
9. Dew Point = This label control shows the dew point of the specific place.
10. Humidity = In this label control, you can view the current weather humidity of the particular place.
11. Last Update = You can see the last weather updation in this label control.

• Now we will see what are the formulas we will use and get all the latest weather details in the app.

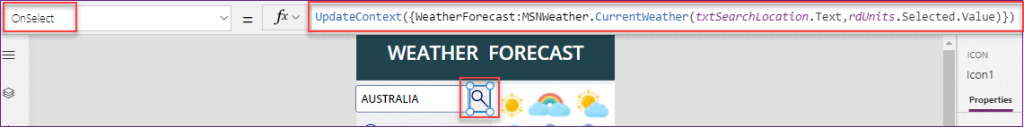

1. At first, Select the Search icon and apply the below code on its Onselect property as:

OnSelect = UpdateContext(
    {
        WeatherForecast: MSNWeather.CurrentWeather(
            txtSearchLocation.Text,
            rdUnits.Selected.Value
        )
    }
)

Where,

• WeatherForecast = Context variable name
• txtSearchLocation = Text input control name where a user can enter the location
• rdUnits = Radio control name

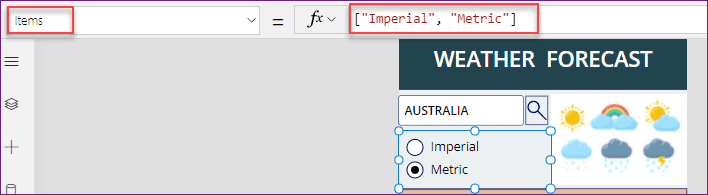

2. The second thing is about the Radio button control. Select the control and set its Items property as:

Items = ["Imperial", "Metric"]

3. Now we will discuss about all the latest Weather Forecast like Temperature, Pressure, Dew point etc. Follow the below codes to get the details as:

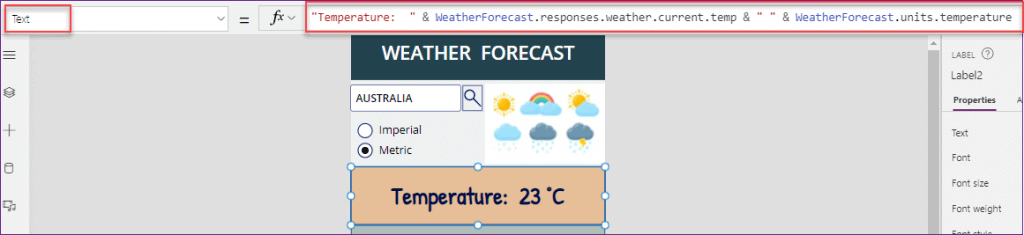

Temperature:

To get the latest temperature of the specific location, you can set the below code to the Label’s Text property as:

Text = "Temperature:  " & WeatherForecast.responses.weather.current.temp & " " & WeatherForecast.units.temperature

Where,

WeatherForecast = Specified context Variable name

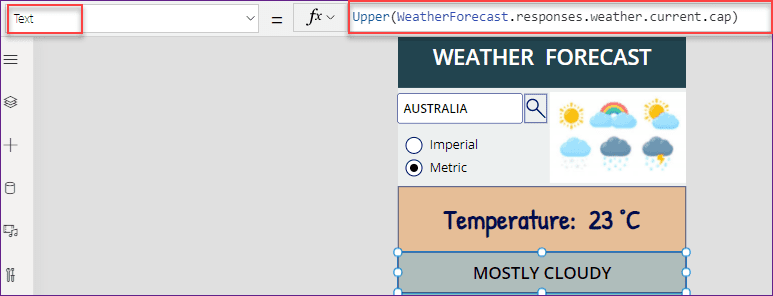

Conditions:

To get the current weather condition of the specific location, you can set the below code to the Label’s Text property as:

Text = Upper(WeatherForecast.responses.weather.current.cap)

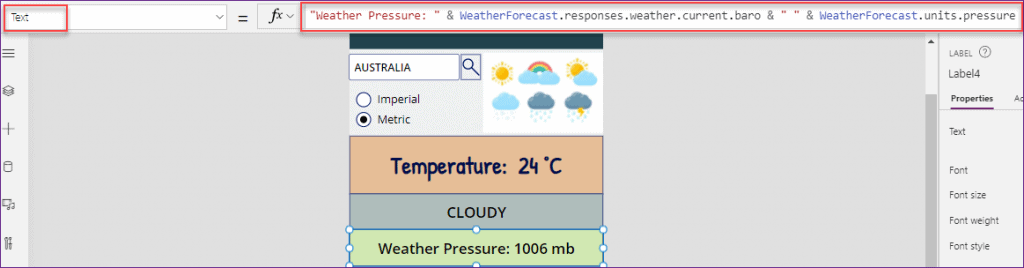

Pressure:

To get the current weather pressure of the specific location, you can set the below code to the Label’s Text property as:

Text = "Weather Pressure: " & WeatherForecast.responses.weather.current.baro & " " & WeatherForecast.units.pressure

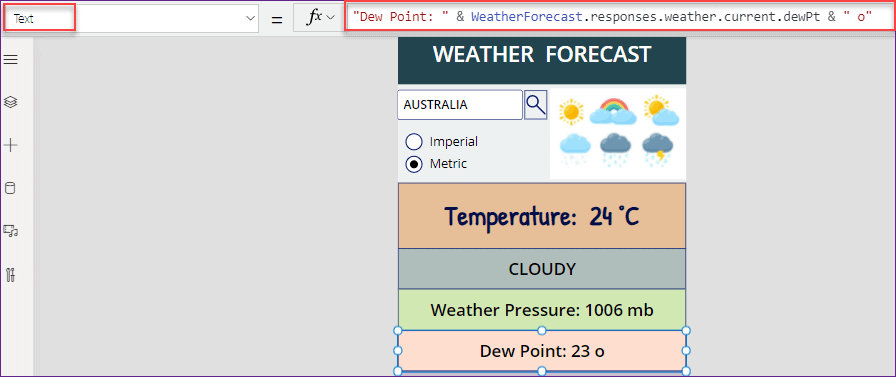

Dew Point:

To get the weather dew point of the specific location, you can set the below code to the Label’s Text property as:

Text = "Dew Point: " & WeatherForecast.responses.weather.current.dewPt & " o"

Humidity:

To get the weather humidity of the specific location, you can set the below code to the Label’s Text property as:

Text = "Humidity: " & WeatherForecast.responses.weather.current.rh & " %"

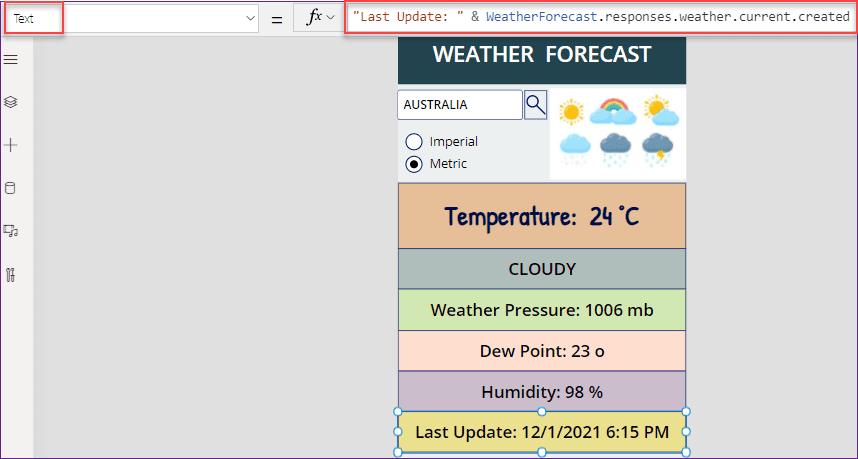

Last Update:

To get the Last weather update of the specific location, you can set the below code to the Label’s Text property as:

Text = "Last Update: " & WeatherForecast.responses.weather.current.created

• Not only these weather parameters, but also you can get more weather information by using the provided code that I have explained you in the above tables.
• For example, you can use the code to get the latest weather information like UV Index, Visibility Distance, Wind Direction, Latitude, Longitude etc.
